Manufacturer

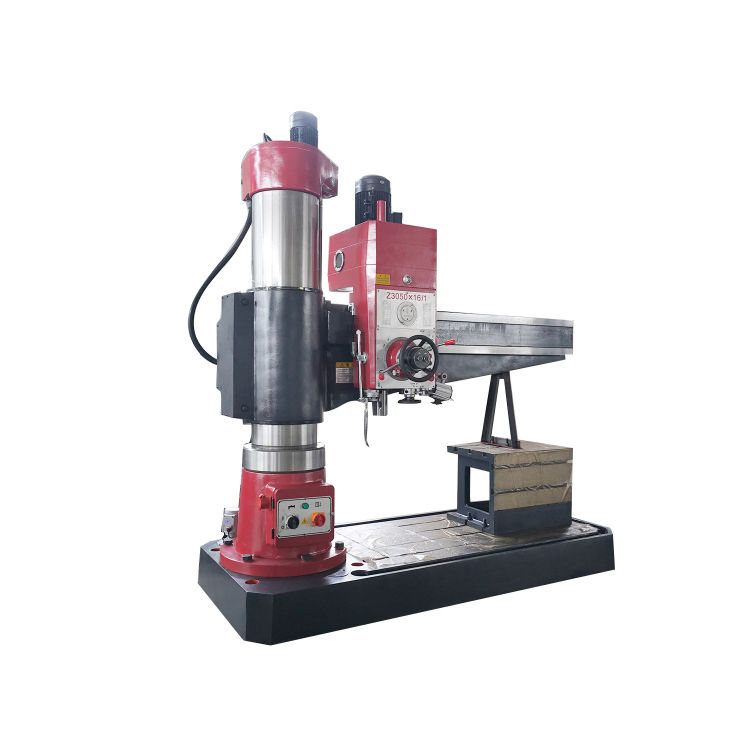

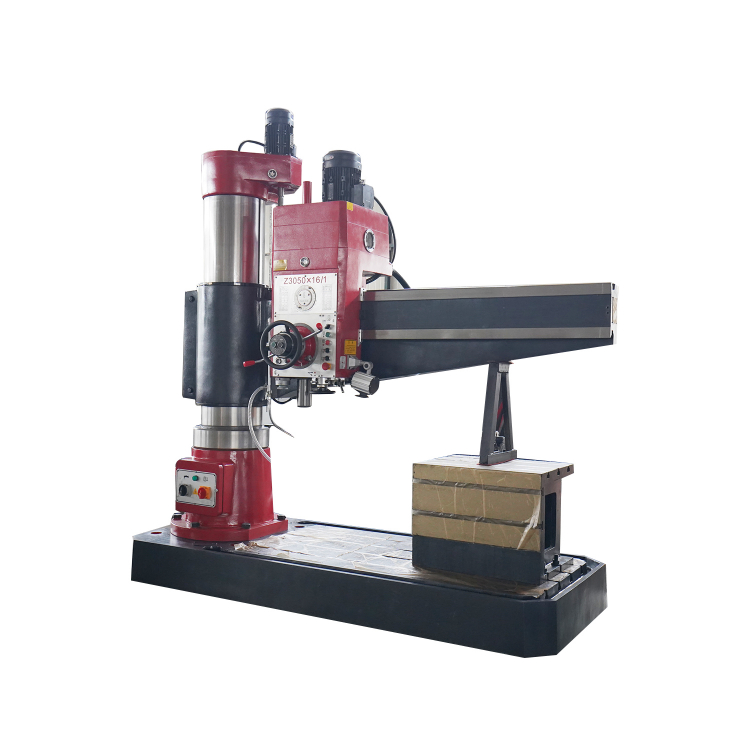

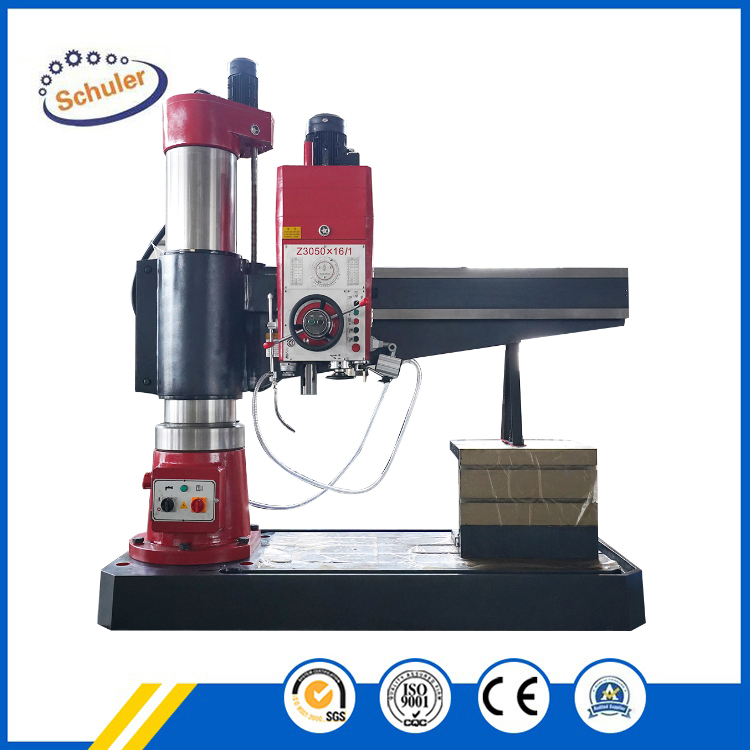

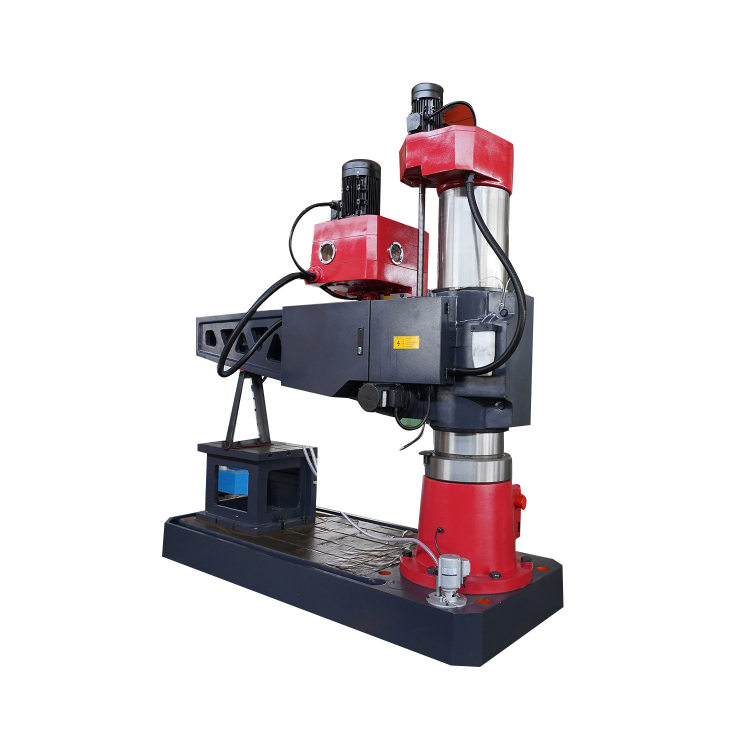

Z3040 Z3050 Hydraulic Clamping Radial Drill Press
USD 9000,00 – 10000,00
/ Piece
Le prix varie selon la quantité et les spécifications
| Qté min. | 1 Piece |
| Catégorie | Machinery |
26
Ans
98%
Taux de réponse
24h
Délai de réponse
Plus de ce fournisseur
Description du produit
Aucune description disponible. Veuillez envoyer une demande pour plus d'informations.
Spécifications techniques
| Model NO. | Z3040 Z3050 Z3063 |
| After-sales Service | 18 Months |
| Warranty | 18 Months |
| Structure | Radial Drilling Machine |
| Layout | Vertical |
| Controlling Mode | Artificial |
| Number of Shaft | 3 |
| Hole Diameter | 50-100mm |
| Automatic Grade | Semiautomatic |
| Precision | High Precision |
| Certification | GS, CE, ISO 9001, SGS |
| Condition | New |
| Max. Drilling Diameter | 50mm |
| Distance Between Spindle Axis and Column | 350-1600mm |
| Distance Between Spindle End and Working | 320-1220mm |
| Horizontal Movement of Spindle Box | 1250mm |
| Transport Package | Plywood Cases |
| Specification | 2550*1100*2550mm |
| Trademark | SCHULER |
| Origin | China |
| HS Code | 8459290000 |
