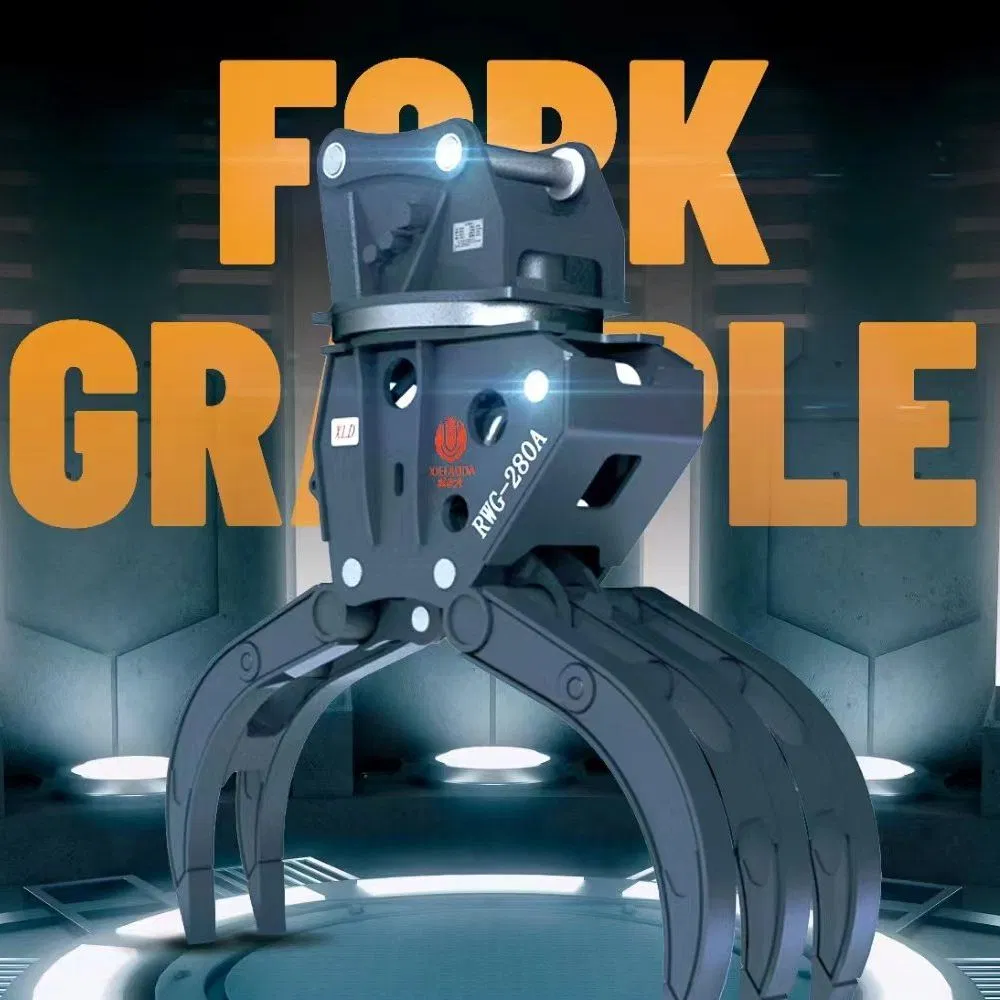

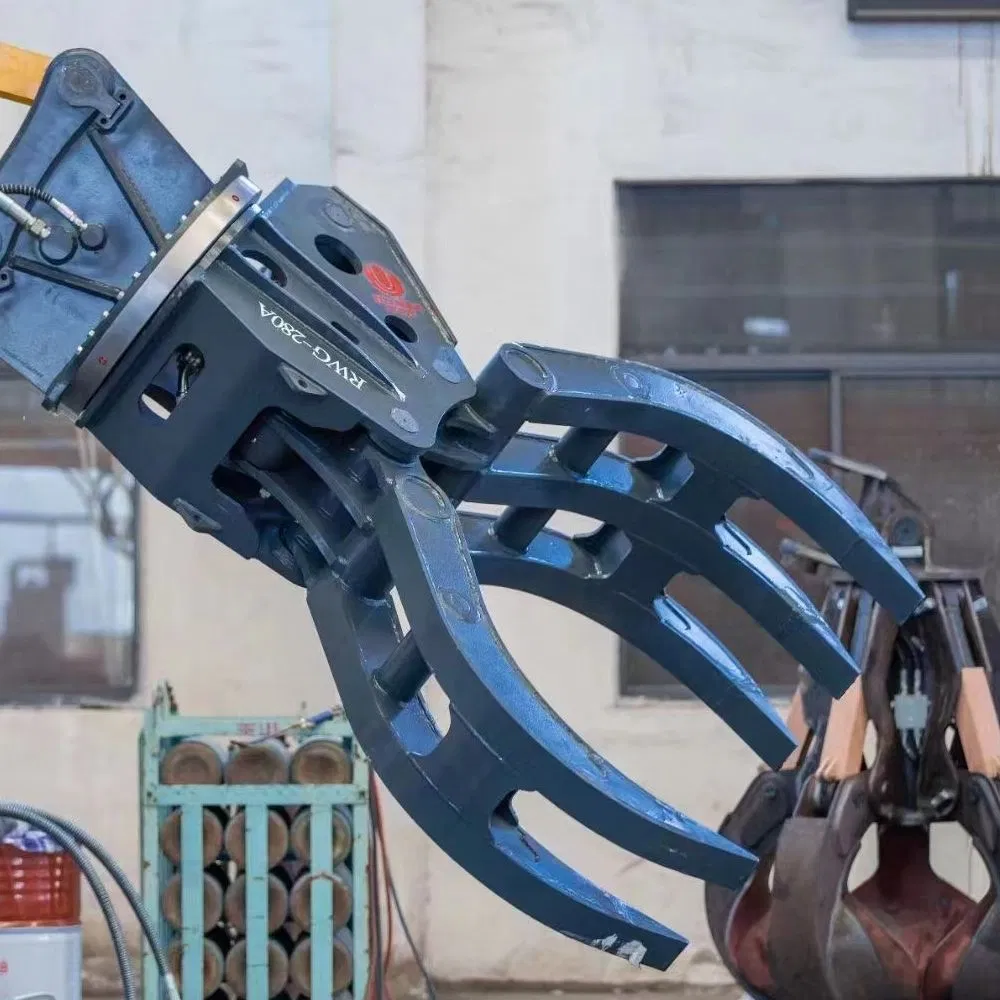

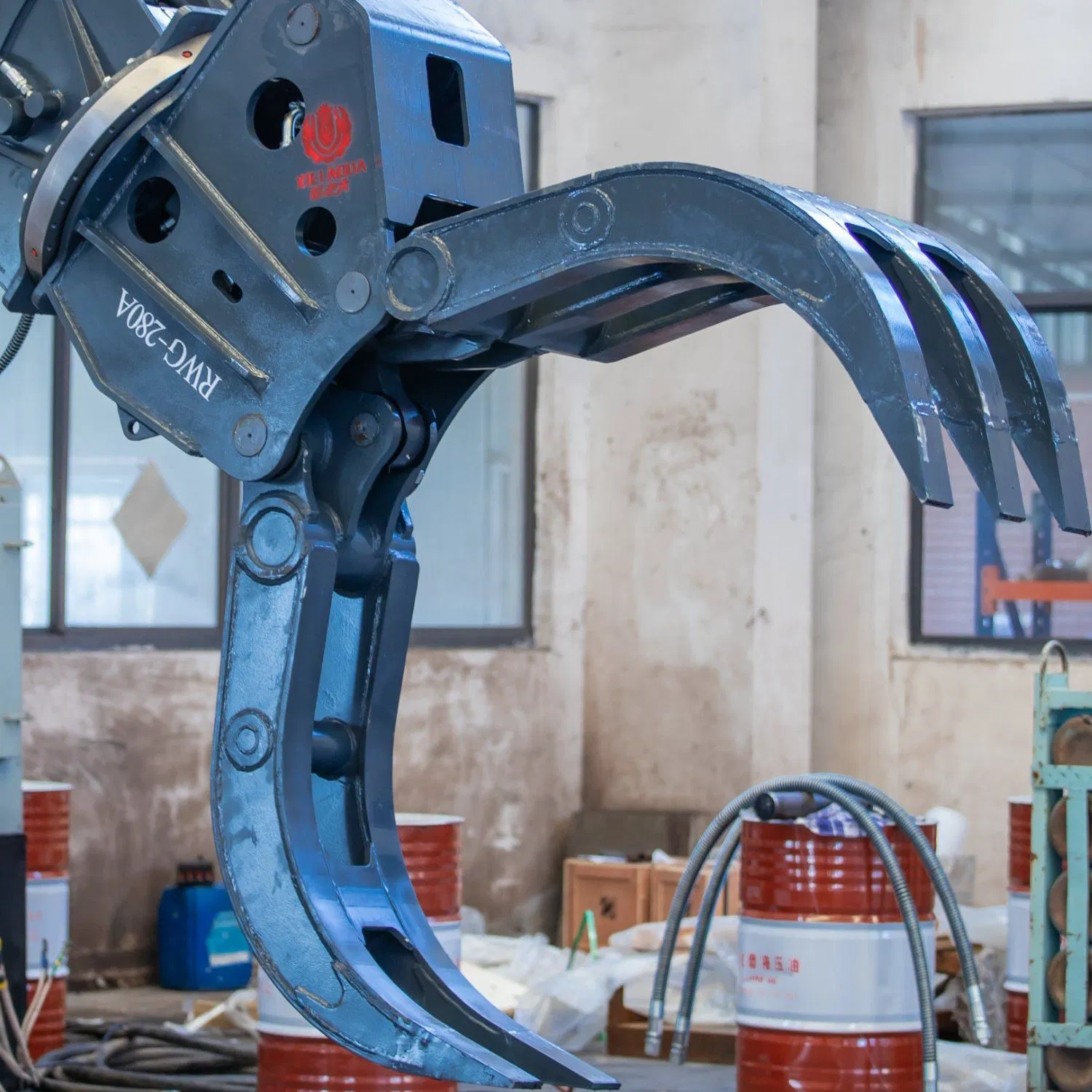

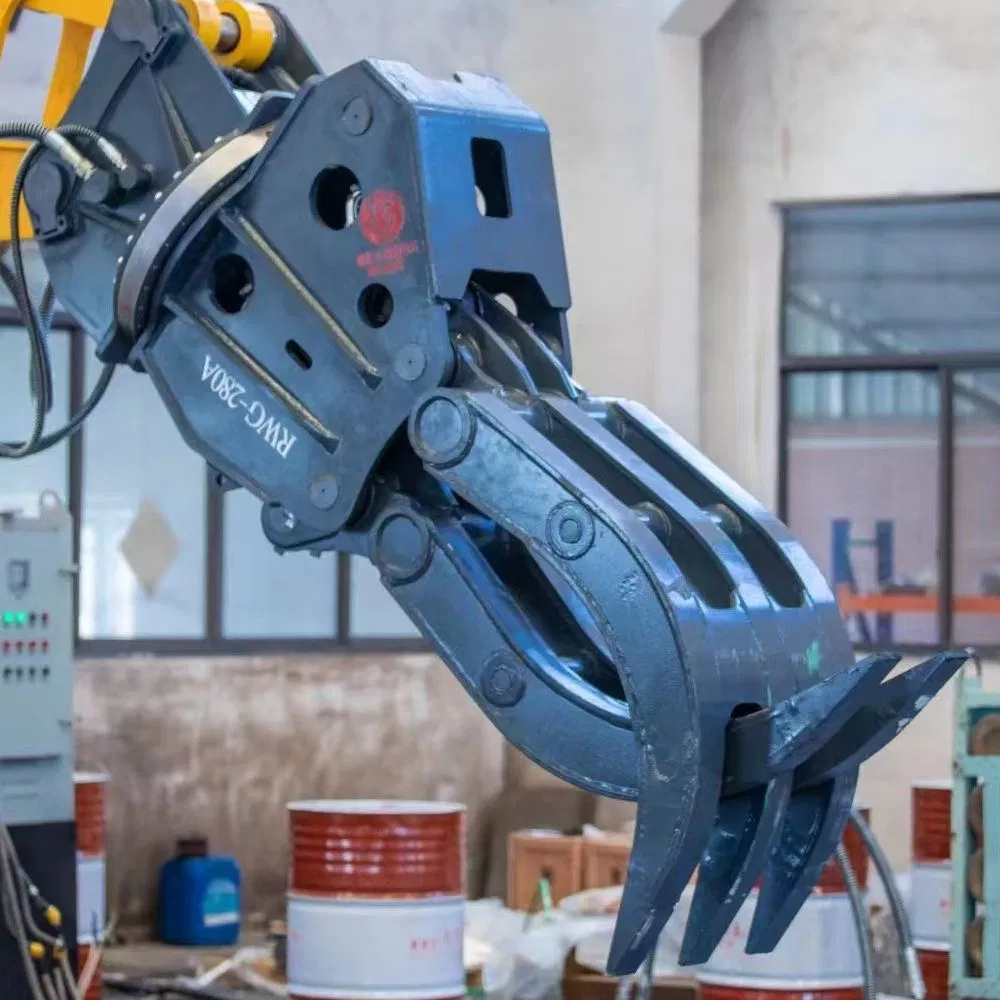

Hydraulic Rotation Stone Hydraulic Grapple Wood Grapple Hydraulic Log Grab
USD 3000,00 – 15000,00
/ piece
Le prix varie selon la quantité et les spécifications
| Qté min. | 1 piece |
| Catégorie | General |
20
Ans
98%
Taux de réponse
24h
Délai de réponse
Plus de ce fournisseur
Description du produit
Aucune description disponible. Veuillez envoyer une demande pour plus d'informations.
Spécifications techniques
| Model NO. | RWG28 |
| After-sales Service | Online |
| Warranty | 1 Year |
| Type | Excavator Attachment |
| Application | Material Handler |
| Certification | CE, ISO9001: 2000 |
| Condition | New |
| Product Name | Log Grapple |
| Suitable Tonnage | 20 - 30t |
| Shut Height | 2640mm |
| Open Height | 2510mm |
| Opening Size | 2200mm |
| Fork Width | 728mm |
| Fork Length | 1550mm |
| Fork Tip Max. Grip | 73.8kN |
| Rated Open Pressure | 30MPa |
| Rated Rotational Pressure | 25MPa |
| Rated Rotational Flow | 30 - 60L/Min |
| Rotation Speed | 9 - 12rpm |
| Weight | 2350kg |
| Transport Package | Pallets |
| Specification | RWG28 |
| Trademark | RUNYE |
| Origin | China |
| HS Code | 8431499900 |
